Himod S系列是公司1997年開發的模塊式專用空調采用了許多新技術和新工藝，從對機房環境空間的適應性、高效節能、經濟性、降噪和環境保護等方面賦予機房專用空調全新的概念。制冷量 from 4 to 30 kW下送風，上送風，可在現場互相轉換，具有密碼保護、專家故障診斷功能，相序檢測功能，可實現來電自啟動。最優化和靈活的結構體系，可7速調節插拔式風機，靈活的內部設計，制冷機回路最長可達 50 m，高 30 m， Class 0 (A1 EU) 防火面板，全系列所有模塊均為高調節精度，全系列所有模塊風向均可調，全系列模塊的主要部件均固定安裝于模塊內，僅風機方向可為滿足上送/下送的要求變化，主要部件方便安裝拆卸，送風機型為風機推動式設計，非常高的溫度及濕度控制精度 (±0.3°C；±2%RH)。
S series was developed by the company in 1997 which is modularized type of air conditioner using the new technology and new process, given the new concept of air conditioner from the aspects of environmental space adaptability, high efficiency, energy saving, economy, noise reduction, and environmental protection. Cooling capacity is from 4 to 30 kW. The blowing direction can be changed in the field. It comes with password protection, expert fault diagnosis function, phase sequence detection function, and the call for the start. The function includes the optimization and flexible structure system, 7-speed regulating plug type fan, interior flexible design, refrigeration loop up to a maximum of 50 m x 30 m, and Class 0 (A1 EU) fire panels. The full range of all modules is highly accuracy and adjustable air direction. The main component of all series modules is fixed in the module with fan direction for meeting the requirement of above and below air blowing. It is convenient installation and disassembly. The blowing machine is the fan driven design and very high temperature and humidity control precision (± 0.3 ° ± C; 2%RH).
海洛斯精密空調優點：
1．先進的智能化控制技術，Hiromatic圖形控制器，易操作的人性化界面，精確的微電腦控制系統；多級密碼保護，防止誤操作；具備運行狀態智能顯示、專家故障診斷功能；記錄各主要部件的運行時間；設置參數自動保護，即使停電后也可以保存運行參數和告警記錄。
The function includes the advanced intelligent control technology, Hiromatic graphics controller, user-friendly interface, microcomputer control system, multilevel password protection, prevention of the missed operation, operation status, and intelligent fault diagnosis expert system recording the main parts of the running time. It has the automatic protection settings, even after the power failure can also save operation parameters and alarm records.
2．海洛斯精密空調高可靠性，超寬輸入電壓設計，來電自啟動；高低電壓自動監測和保護功能；產品按照每年365天，每天24小時運行長壽命設計。
It is highly reliable, wide range voltage designed, and calling of starting. With high and low voltage automatic monitoring and protection function is good for 365 days a year, 24 hours a day running time.
3．海洛斯精密空調易操作維護的結構設計，全正面維護結構，易打開的前面板設計，機組維護方便易行，靈活的機組安裝方式。
Structure design for easy operation and maintenance and installation allows to access in front of panel.
4．海洛斯精密空調超強網絡管理功能，配置RS485監控接口，提供標準的通信協議，靈活的主備機切換功能，實現機組自動切換、輪流值班功能，方便的遠程開關機和管理功能，遠程告警及查詢和遠程故障處理及消聲。
Super network management function with RS485 interface providing the standard communication protocols and switching function realizes the unit automatically switch. It also provides taking turns on duty function, remote switch and managing function, alarm and remote query and remote fault processing and noise elimination.
5．海洛斯精密空調高顯熱比：通訊機房內電子設備釋放出大量的顯熱。針對機房特點實現0.9以上的高顯熱比，在機房環境下使用，相對于普通舒適性空調節省20-30%的能耗，并因此避免過度除濕和送風帶霧。
High SHR: The electronic equipment in the communication room releases large quantity of sensible heat. The feature is to achieve high sensible heat ratio above 0.9 which used in the computer room, and is compared with ordinary comfort air conditioning energy saving up to 20-30%. Thus, it avoids excessive dampness and the foggy wind.
6．海洛斯精密空調先進的微電腦控制器：先進的微電腦控制大屏幕LCD背光顯示易操作的人性化界面精確的微電腦控制系統多級密碼保護，防止誤操作具備運行狀態智能顯示、專家故障診斷功能記錄各主要部件的運行時間設置參數自動保護，即使停電后也可以保存運行參數和告警記錄具有來電自啟動及延時設定功能。
Advanced microcomputer controller: The advanced microcomputer control with large LCD display provides the user-friendly interface, easy operation and accurate of microcomputer control system for multilevel password protection, prevention of the missed operation, running status intelligence display, expert fault diagnosis function of recording the running time, and setting parameter automatic protection. Even after the power failure can also save the operation parameters and alarm record with the call for the start and delay setting function.
7. 海洛斯精密空調易操作維護的結構設計：
機組結構緊湊，只需很小的維修空間及地面空間，全正面維護。易打開的前面板設計，機組維護方便易行，靈活的機組安裝方式。冷量，送風風速自動調節。
Structure design for easy operation and maintenance: The unit with compact structure is required less space for repairing and is accessed in front for maintenance. Front panel design is easy to open, convenient maintenance and easy installation. Air speed is automatic adjustable.
8．海洛斯精密空調高能效比壓縮機：
應用高能效比的谷輪(Copeland世界上最大的渦漩式壓縮機生產廠)公司渦漩式( SCROLL )壓縮機。渦漩壓縮機的活動部件的減少使機組的噪聲及震動降低很多；壓縮機的壓縮過程連續、平穩；壓縮機的排氣過程旋轉角度超過540度；在吸氣及壓縮過程中沒有熱量交換；在壓縮過程中制冷劑氣流方向沒有改變；減少了氣流損失；渦漩式壓縮機無需高、低壓閥門；減少了閥門容積損失，專利的動、靜渦旋脫離技術可有效防止產生液擊；啟動電流低。同類壓縮機能效比最高，達到3.4。
High efficient compressor: The unit is used the high efficient Copeland vortex type scroll compressor (Copeland is the world's largest vortex compressor factory). The active components of vortex compressor reduce the unit's noise and vibration a lot. The compression process is continuous and stable. The exhaust process rotates angle more than 540 degrees. In the suction and compression process there is no heat exchange. The refrigerant flow direction did not change during the compression process. Reducing the flow loss lets the vortex compressor without using the high and pressure valves. Reducing the volume loss of patent valve, dynamic and static vortex from the technology can effectively prevent the liquid hammer and lower starting current. The energy efficiency ratio for similar compressor is the highest, reaching 3.4.
9．海洛斯精密空調無級調速低噪風冷冷凝器：風冷冷凝器采用船用等級耐腐材料，具有良好的剛性和防腐性能，適應多種環境條件。采用全調速風扇，實現節能、低噪。
Stepless and low noise air-cooling condenser: The air cooling condenser adopts ship rot resistant material with rigid and has good anti-corrosion performance. It adapts to a variety of environmental conditions. Using full adjustable speed fan provides the energy saving and low noise.
10．海洛斯精密空調HIMOD系列采用了全球獨創徑向離心直驅風機，設在空調中部，空調下部作為消噪音的靜壓箱，以避免風機設在底部直接吹向地面引起的空氣擾動，風壓在現場連續可調，范圍從20Pa到430Pa，滿足各種送風環境；與傳統的皮帶式風機相比：更高效-可忽略的傳輸損耗；低噪音更小的震動；更少的維護-不必周期性更換皮帶及必要的皮帶調整；更潔凈的機房環境。
The HIMOD series incorporates global original radial direct fan located in the central of air conditioning. In order to avoid the noise of fan the pressure box is arranged at the bottom blowing directly to the ground caused by air turbulence with air adjustable pressure in the field ranging from 20Pa to 430Pa to meet the various kinds of air environment. To compare with traditional belt type blower it reduces the transmission loss and provides more features with high efficiency, low noise, less vibration and less maintenance. It does not necessarily periodic replace the belt and the necessary belt adjustment. Let the room environment cleaner.
海洛斯精密空調其它特點：
1）具備加濕功能的機型，采用可拆卸并可自動調節、沖洗式加濕罐。為了適應許多水質很差的地區使用，它采用了獨特的控制技術并使用了“模糊邏輯”控制軟件。它可以根據水的電導率，自動調整電極的電流值。同時，它可以根據水的硬度，確定加濕罐的沖洗次數。加濕器為可拆裝式，對加濕器進行清洗后可繼續使用，一方面，可以延長加濕罐的使用壽命；另一方面，可以使加濕器達到最高的使用效率。因此，它可以用在水的電導率特別高的環境——常常是在很偏遠的地區。
The humidifying function models is used the removable, adjustable automatically, and flushing type humidifier. In order to adapt many poor water areas, it adopts the control technology which is unique and the use of "fuzzy logic" control software. It can be based on the conductivity of the water current, automatically adjust the value of the electrode. At the same time, it can be determined the flushing times for humidification tank according to the hardness of water. The humidifier is removable. By clean the humidifier can continue to use, on the one hand, can prolong the service life of tank; on the other hand, and can make the humidifier that has the highest efficiency. Therefore, it can be used in the electrical conductivity of water that is particularly high in remote areas
2）海洛斯精密空調具備加熱功能的機型。
With heating functional models.
3）海洛斯精密空調標準配置的空氣過濾器，可保證機房達到要求的潔凈度。
The air filter is standard which can guarantee to meet the requirements of cleanness in the room.
4）可適應極寬的室外環境。普通機型-15℃ ～ +45℃范圍內制冷工作，LEE-TEMP機型-34℃ ～ +45℃范圍內制冷工作。加熱不受溫度條件限制。
The unit can adapt to outdoor environment very wide. The general model is suitable from -15 ℃ to +45 ℃ refrigeration, and the LEE-TEMP model is good from -34 ℃ to +45 ℃ refrigeration. The heating is not affected by temperature conditions.
同時公司非常重視設備的每一個細節，注意到設計細節方法包括產品維護，做到高可靠性和友好的人機設計。例如：全部的至關緊要的冷卻電路的部分，溫度調節閥、膨脹閥、電磁閥、視鏡和干燥過濾罐等，全部集合在易接近正前門的位置，真正做到可全部正面維護。
At the same time, the company pays attention to every detail for equipment, pays attention to design details including product maintenance, ensuring high reliability and friendly man-machine design. For example: all the crucial cooling circuit, temperature control valve, expansion valve, solenoid valve, mirror and drying filter tank, and all sets in the accessibility are the front door for maintenance.
海洛斯精密空調適合應用的領域： Application
實驗室、計量室、造紙行業、煙草行業、紡織工業、博物館、儲藏室、手術室等。
Laboratory, metrology room, paper industry, tobacco industry, textile industry, museums, storage room, operation room.

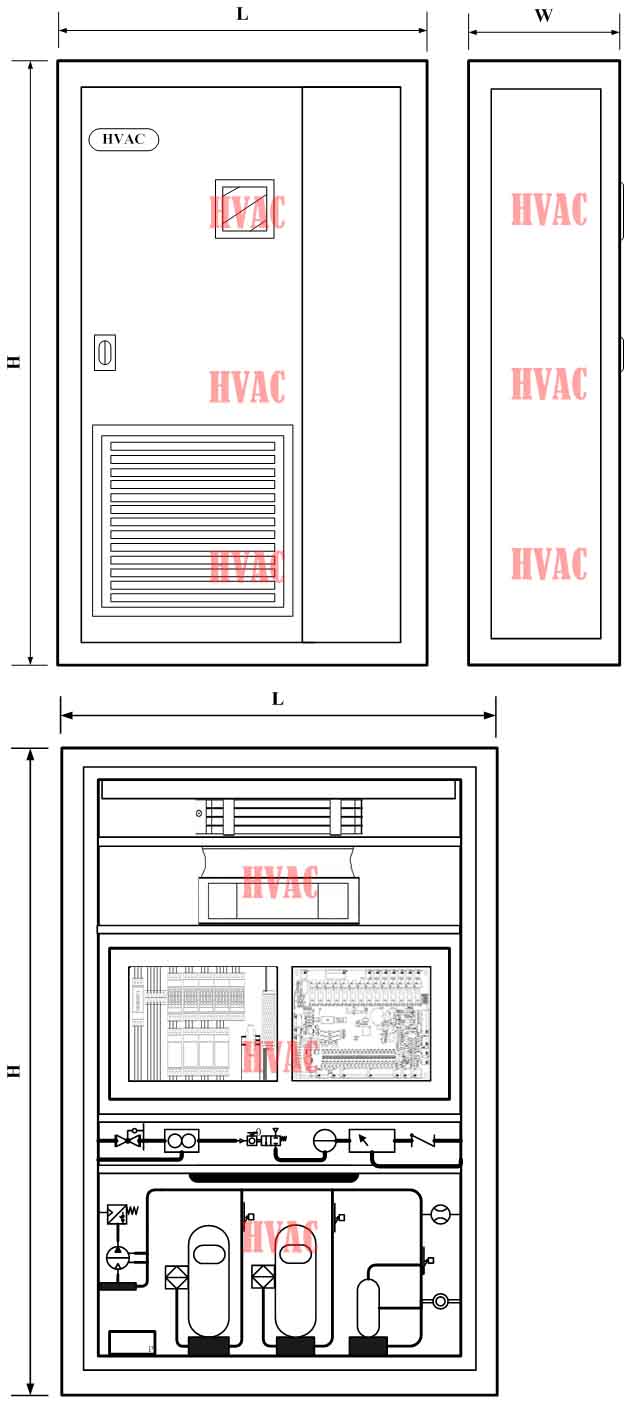

This chart is for reference only, the new design of components and structures for the unit will change depending on the actual situation.
此工程圖僅供參考，新機型所使用的元件及機組內部的設計會根據實際狀況而有所變動。
