F型自然冷卻型，這種機型可通過空氣/氟盤管（直接膨脹制冷）或空氣/冷凍水盤管將室內空氣冷卻，水被室外干冷器冷卻，（1）當室外溫度高于ZET值時，水通過室內水/氟里昂板式換熱器換熱。（2）當室外溫度低于ZET值時，水被室外空氣冷卻后通過水/空氣盤管將室內空氣冷卻。
The F type free cooling model through the air/fluorine coil (direct expansion refrigeration) or air/frozen water coil is used for indoor cooling. Water was cooled by the outdoor dryer. (1) When the outdoor temperature is higher than the ZET values, water through the water/Freon heat exchanger changes the heat. (2) When the outdoor temperature is lower than the ZET values, water was cooled by outdoor air through water/air coil for indoor cooling.

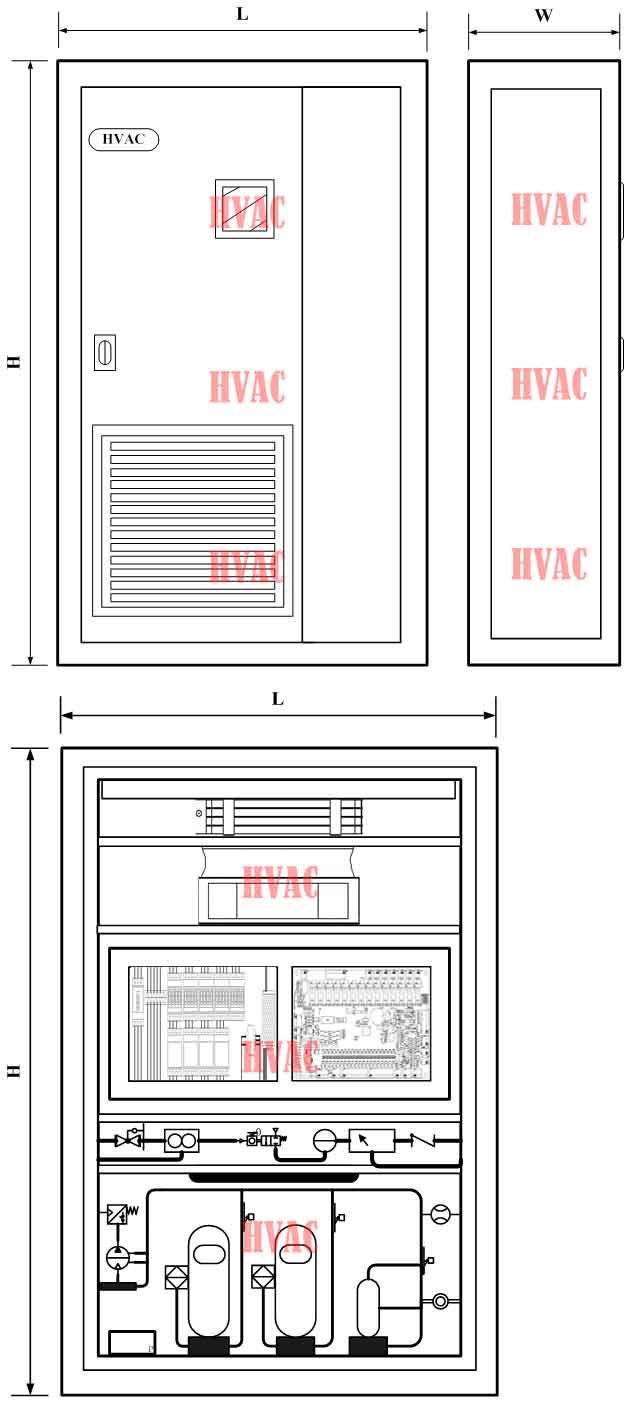

This chart is for reference only, the new design of components and structures for the unit will change depending on the actual situation.
此工程圖僅供參考，新機型所使用的元件及機組內部的設計會根據實際狀況而有所變動。
?
