D型雙冷源機型，可通過空氣/氟盤管（直接膨脹制冷）或空氣/冷凍水盤管將室內空氣冷卻，冷凝器為室外空冷冷凝器。
The D type dual fluid models through the air/fluorine coil (direct expansion refrigeration) or air/frozen water coil is used for indoor cooling. The condenser is the outdoor air cooling condenser.

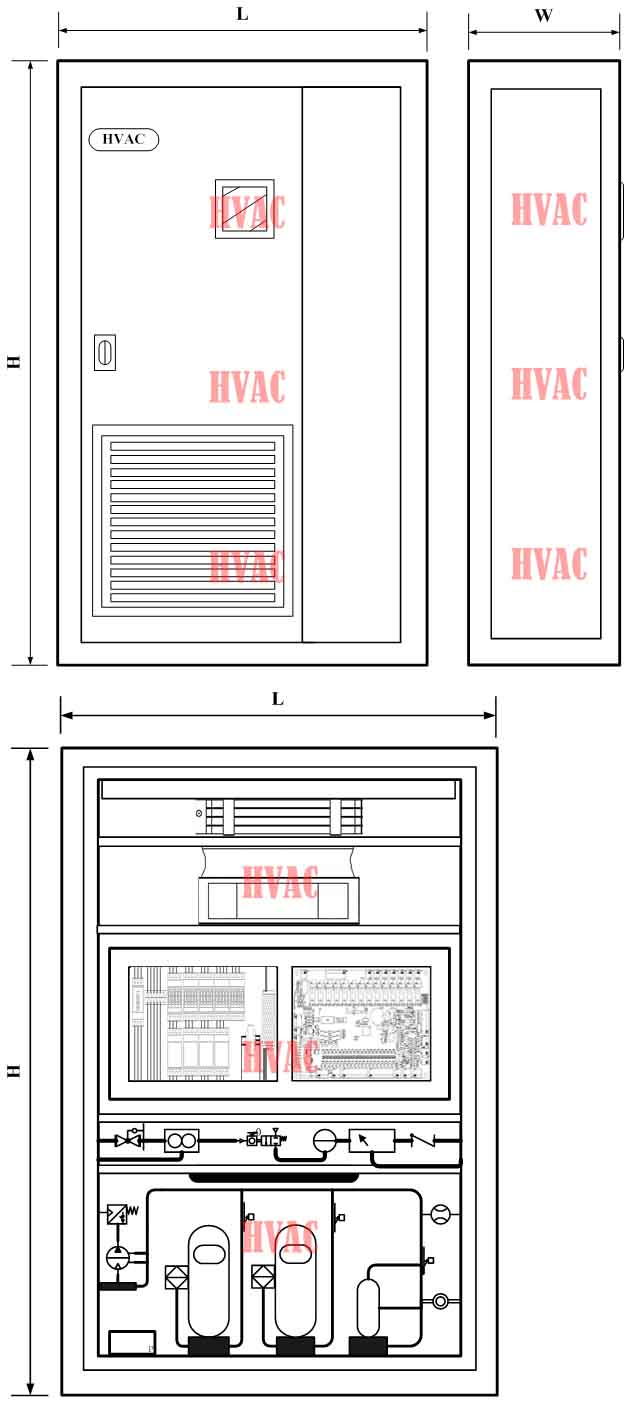

This chart is for reference only, the new design of components and structures for the unit will change depending on the actual situation.
此工程圖僅供參考，新機型所使用的元件及機組內部的設計會根據實際狀況而有所變動。
?
